API testing verifies the functional correctness, reliability, security, and other aspects of APIs. It helps developers detect and resolve potential issues before code deployment to production, improving system availability and reliability. Compared to UI testing, API testing can begin earlier, enabling systems to respond faster to business requirements.

What is an API?

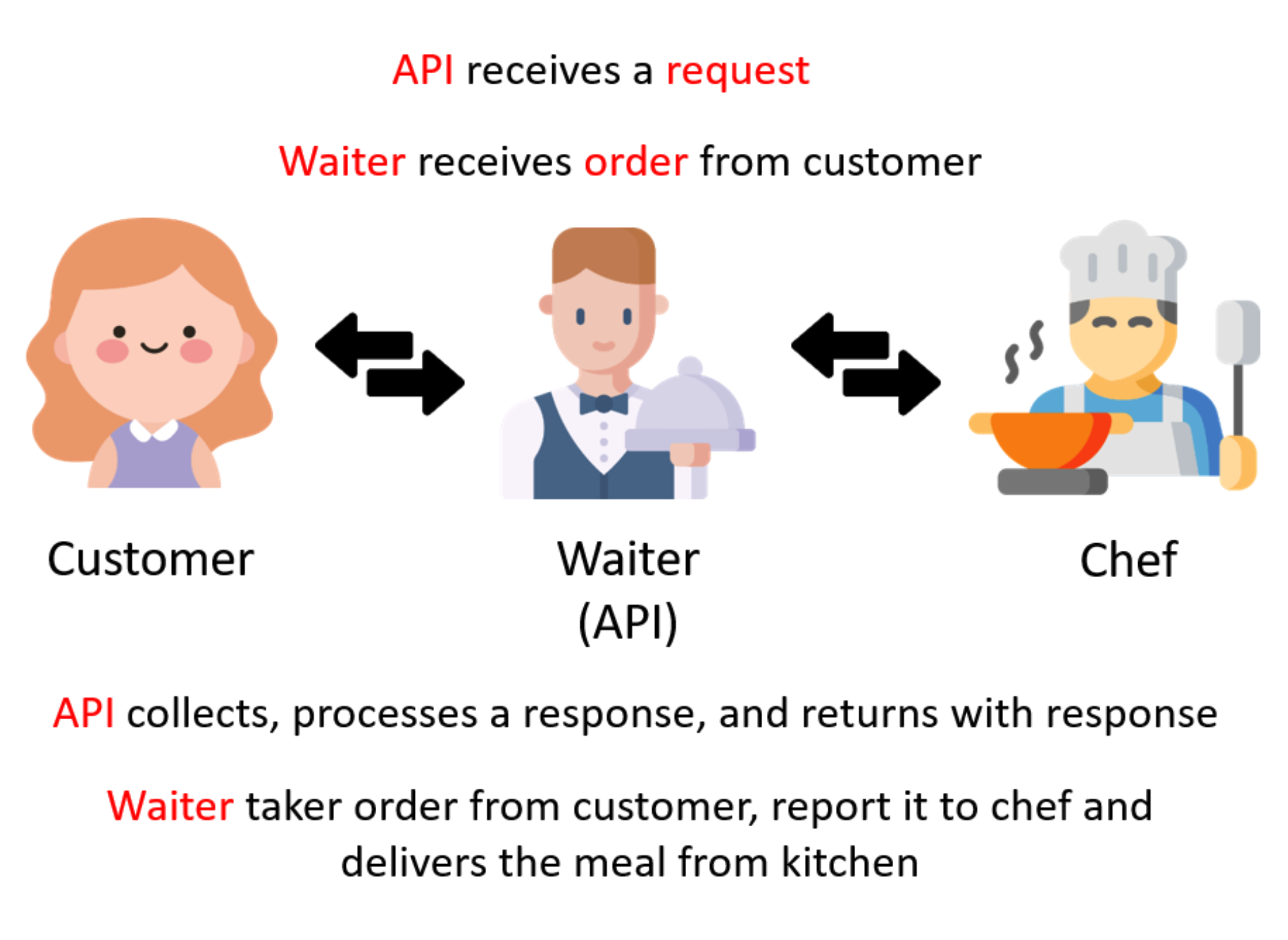

An API (Application Programming Interface) is a set of protocols and tools that allow different applications to communicate and exchange data. Imagine ordering food at a restaurant: you tell the waiter your order without needing to know kitchen operations. The waiter acts as the API, relaying your request and delivering the result. Similarly, APIs abstract underlying code complexities, serving as intermediaries that enable seamless interaction between software components.

APIs in Modern Architecture

As systems grow more complex, monolithic architectures struggle to meet evolving demands. Microservices architecture addresses this by breaking applications into smaller, independent services, each with its own data storage, business logic, and interfaces. This allows teams to develop, test, and deploy services independently, accelerating delivery.

However, microservices also multiply the number of APIs. While a monolithic app might use a single API, microservices require APIs for inter-service communication. This explosion of APIs makes their reliability critical to system stability.

Why is API Testing Important?

With the surge in API usage, ensuring their quality is paramount. A single faulty API can cascade into system-wide failures. API testing:

Detects functional, reliability, and security issues pre-deployment.
Enables faster iteration in microservices environments compared to UI testing.
Validates performance under stress, security against threats, and compliance with specifications.

HTTP/HTTPS Protocols

APIs rely on protocols like HTTP/HTTPS for communication. Understanding these protocols is key to effective API testing.

Common Web Service APIs:

SOAP: XML-based protocol for structured messaging.
REST: Lightweight, stateless architecture using HTTP methods (GET, POST, etc.).
RPC: Remote procedure calls (e.g., gRPC, JSON-RPC).

RESTful APIs dominate modern development due to their simplicity and scalability. They use URIs to identify resources and HTTP methods (GET, POST, PUT, DELETE) for operations.

HTTP Request Structure:

Request Line: Method (e.g., GET), URI, and protocol version.
Headers: Metadata (e.g., Content-Type: application/json).
Body: Data sent to the server (for POST/PUT).

Example HTTP Request:

GET /api/users?id=123 HTTP/1.1
Host: api.example.com
User-Agent: Mozilla/5.0
Accept: application/json

HTTP Response Structure:

Status Line: Protocol version, status code (e.g., 200 OK), and reason phrase.
Headers: Metadata (e.g., Content-Type: application/json).
Body: Data sent by the server (for POST/PUT).

How to Perform API Testing

1. Define Scope

Review design and API documentation to identify:

Target endpoints
Expected request/response formats
Parameters and error codes

2. Design Test Cases

Cover:

Valid/invalid parameter combinations
Edge cases (e.g., empty inputs, rate limits)
Multi-API workflows (e.g., login → data retrieval)

3. Use Testing Tools

Tools like Postman, SoftProbe, or JMeter automate request generation and validation.

Key API Testing Focus Areas

1. Functional Testing

Single Endpoint:

Parameter validation (type, length, format)
Response accuracy (status codes, data integrity)
Error handling (invalid inputs, timeouts)

Multi-Endpoint:

Validate end-to-end business flows (e.g., user registration → order placement)

2. Performance Testing

Load testing (simulate high traffic)
Stress testing (breakpoint analysis)
Latency and throughput measurement

3. Security Testing

Authentication/authorization checks
SQL injection/XSS prevention
Encryption (HTTPS) validation

Demo: API Testing with SoftProbe

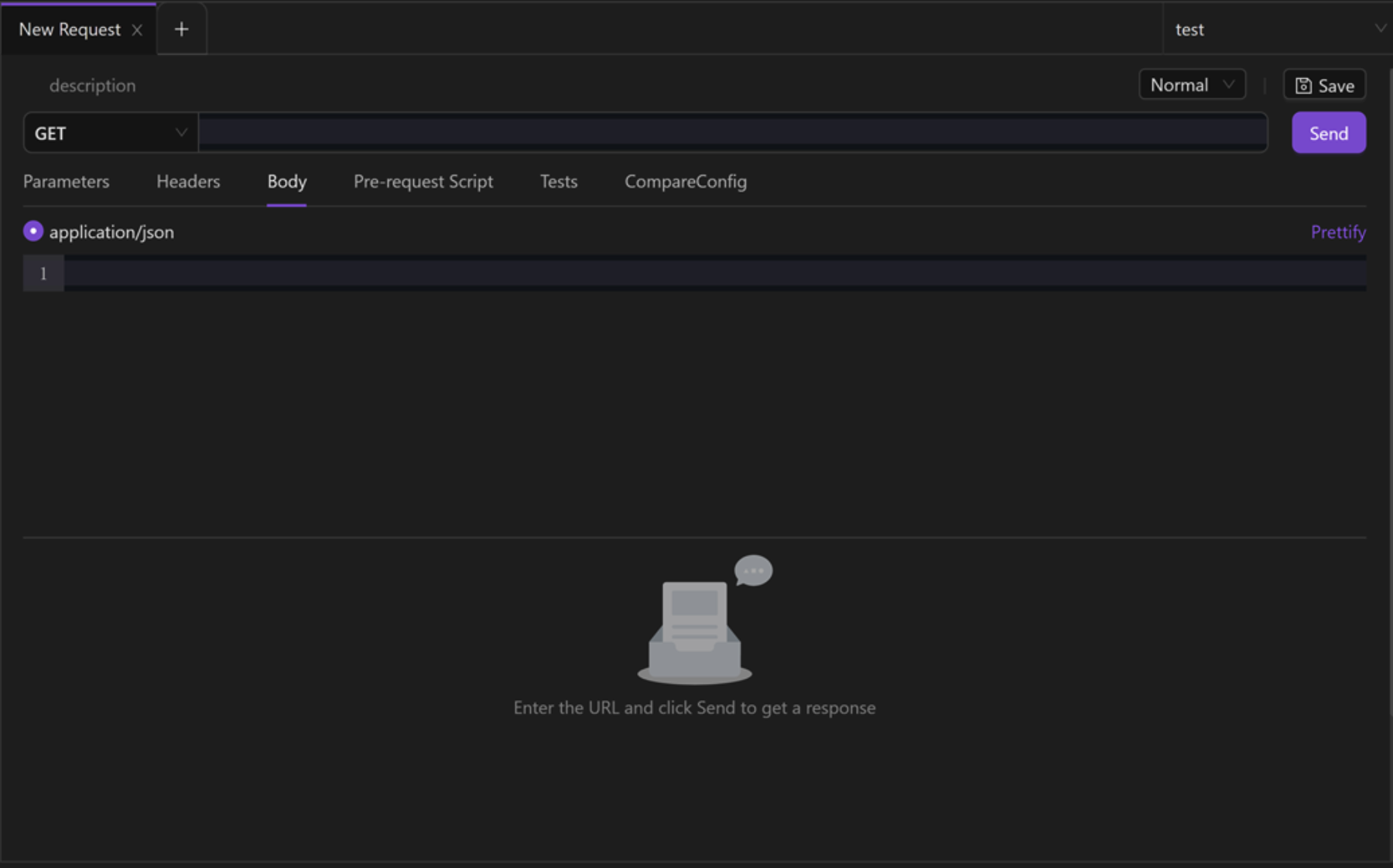

1. Create a Request

URL: Enter the API endpoint
Method: Choose GET, POST, etc

2. Add Parameters

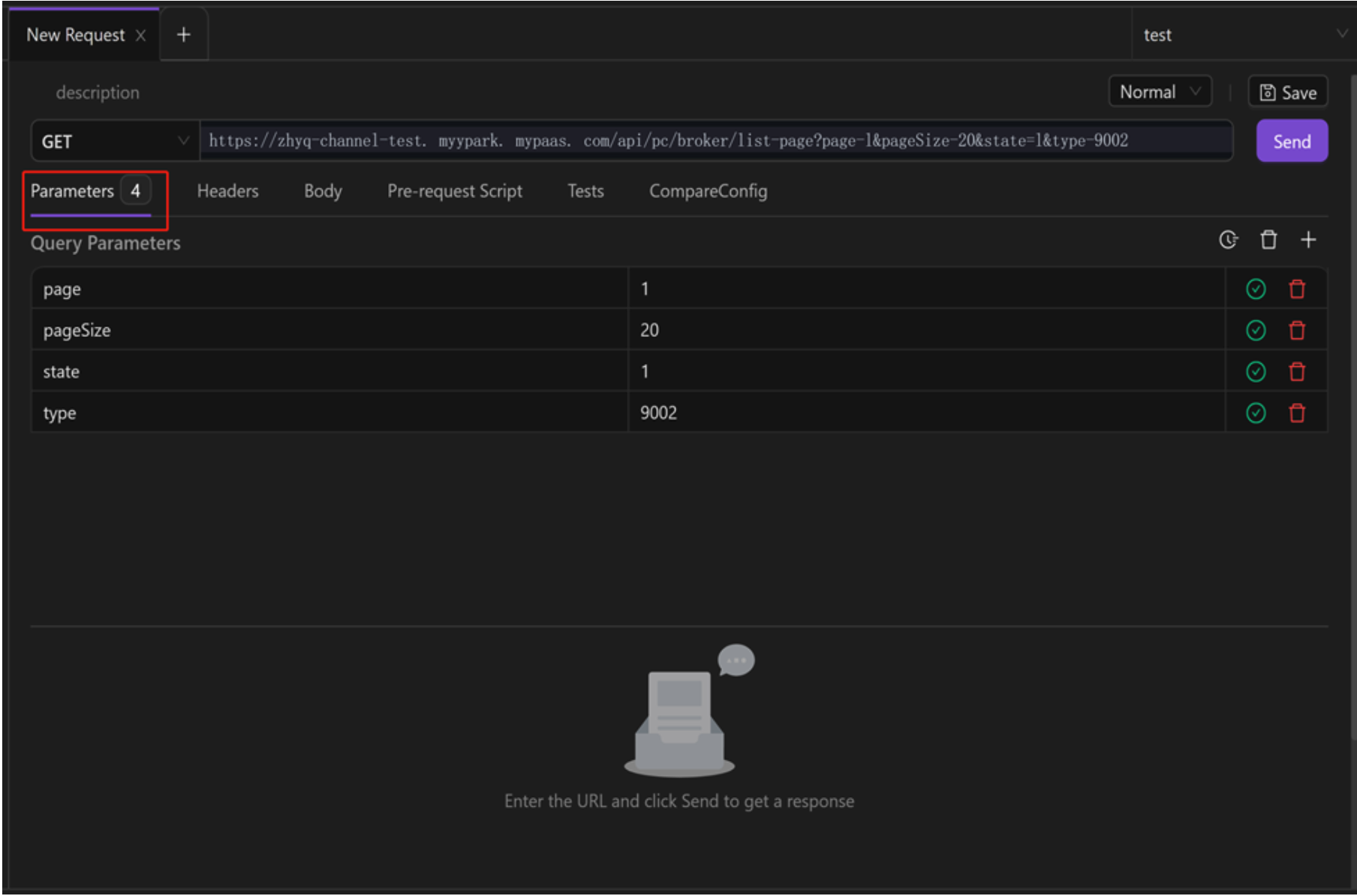

Query: Append ?key=value to the URL

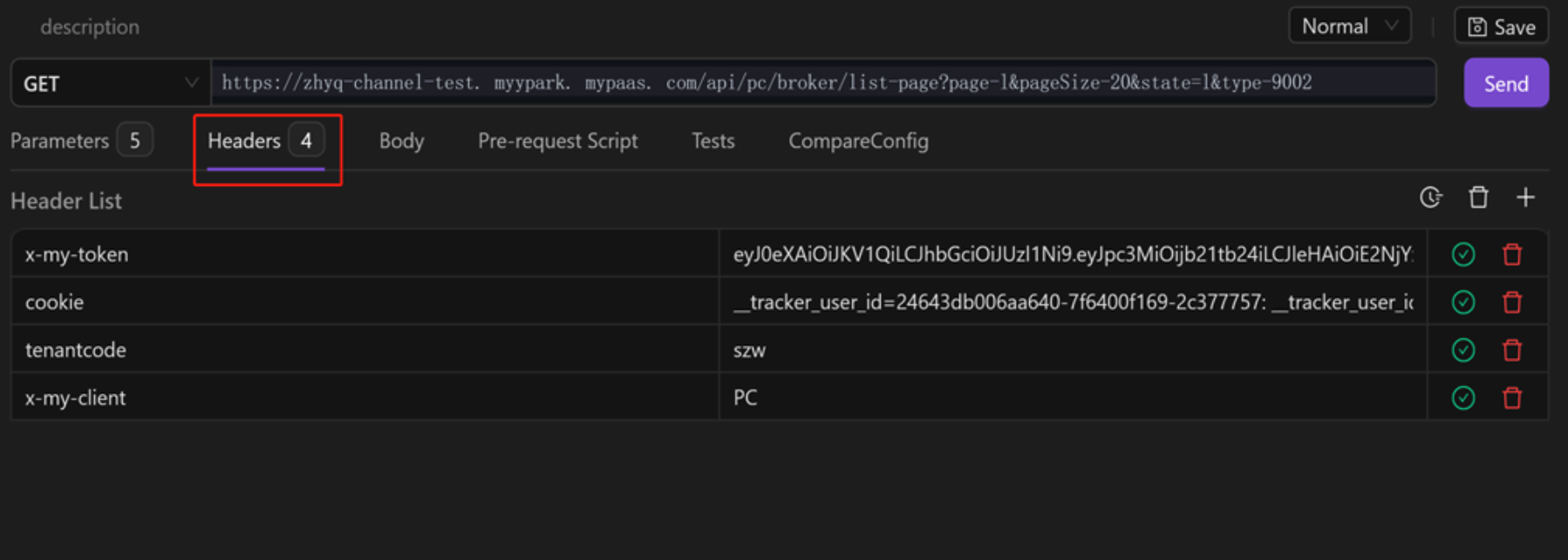

Headers: Add metadata (e.g., Authorization: Bearer <token>)

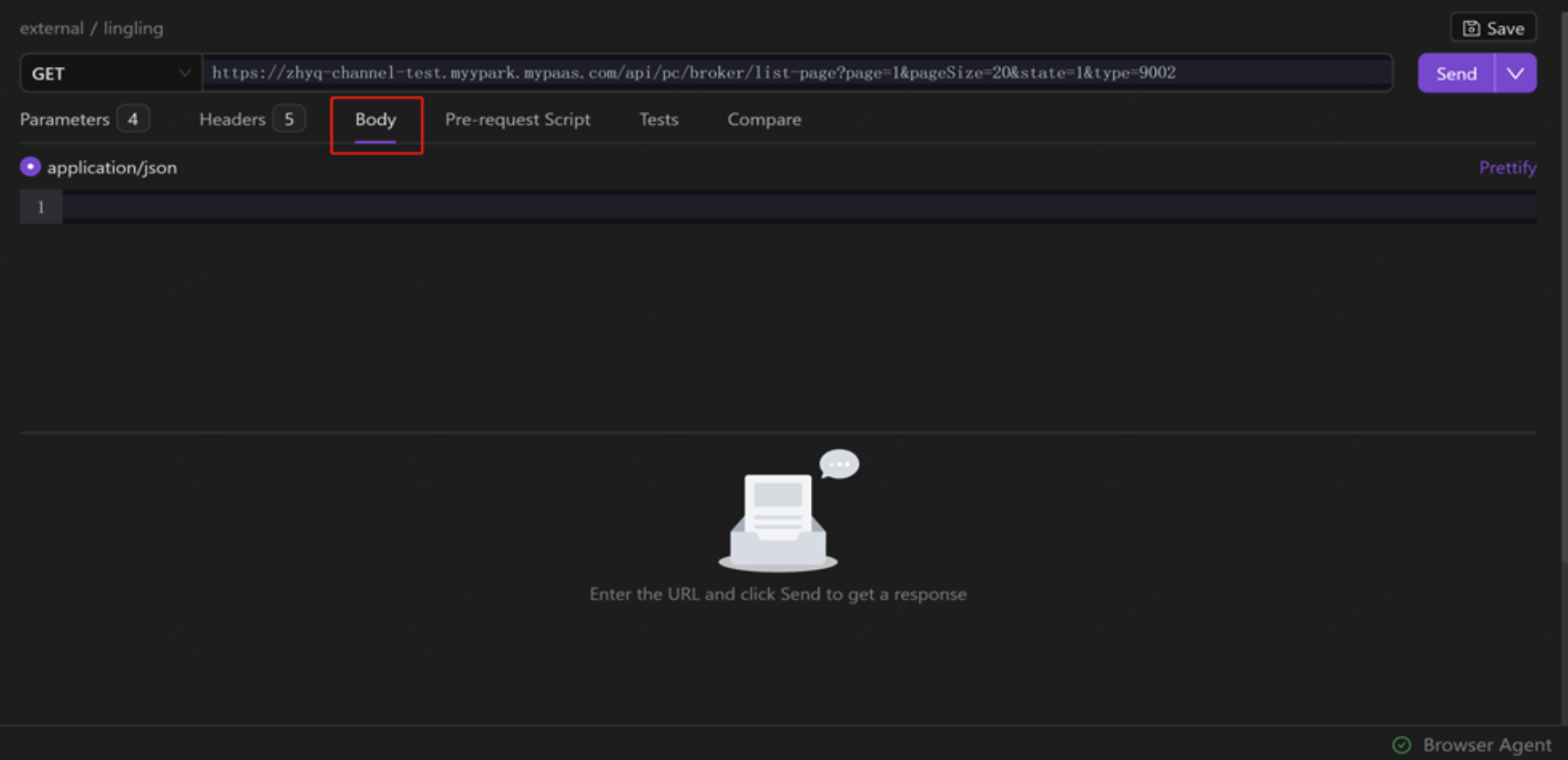

Body: Include JSON/XML payloads for POST/PUT

3. Script Automation

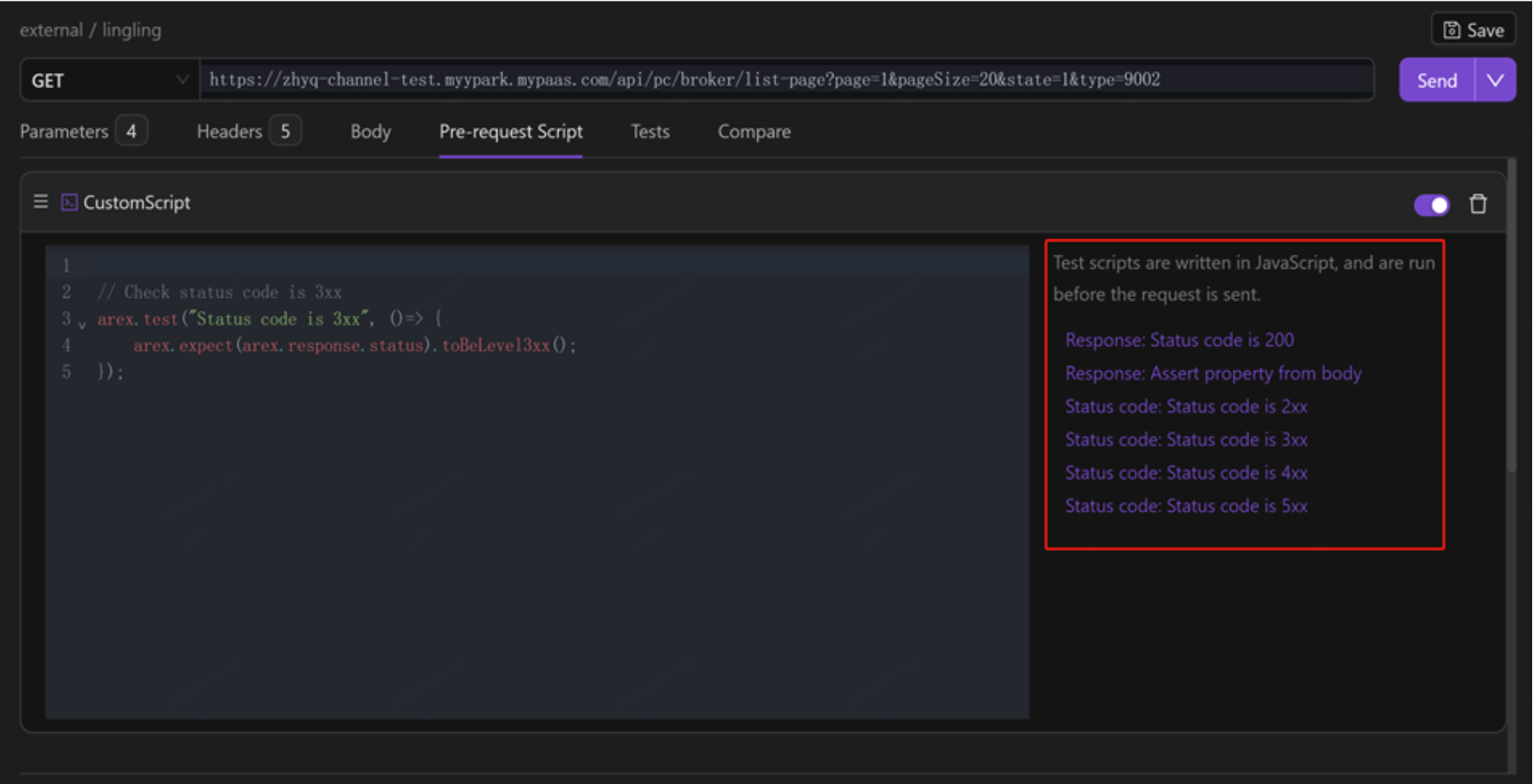

Pre-request Scripts: Dynamically generate tokens or parameters

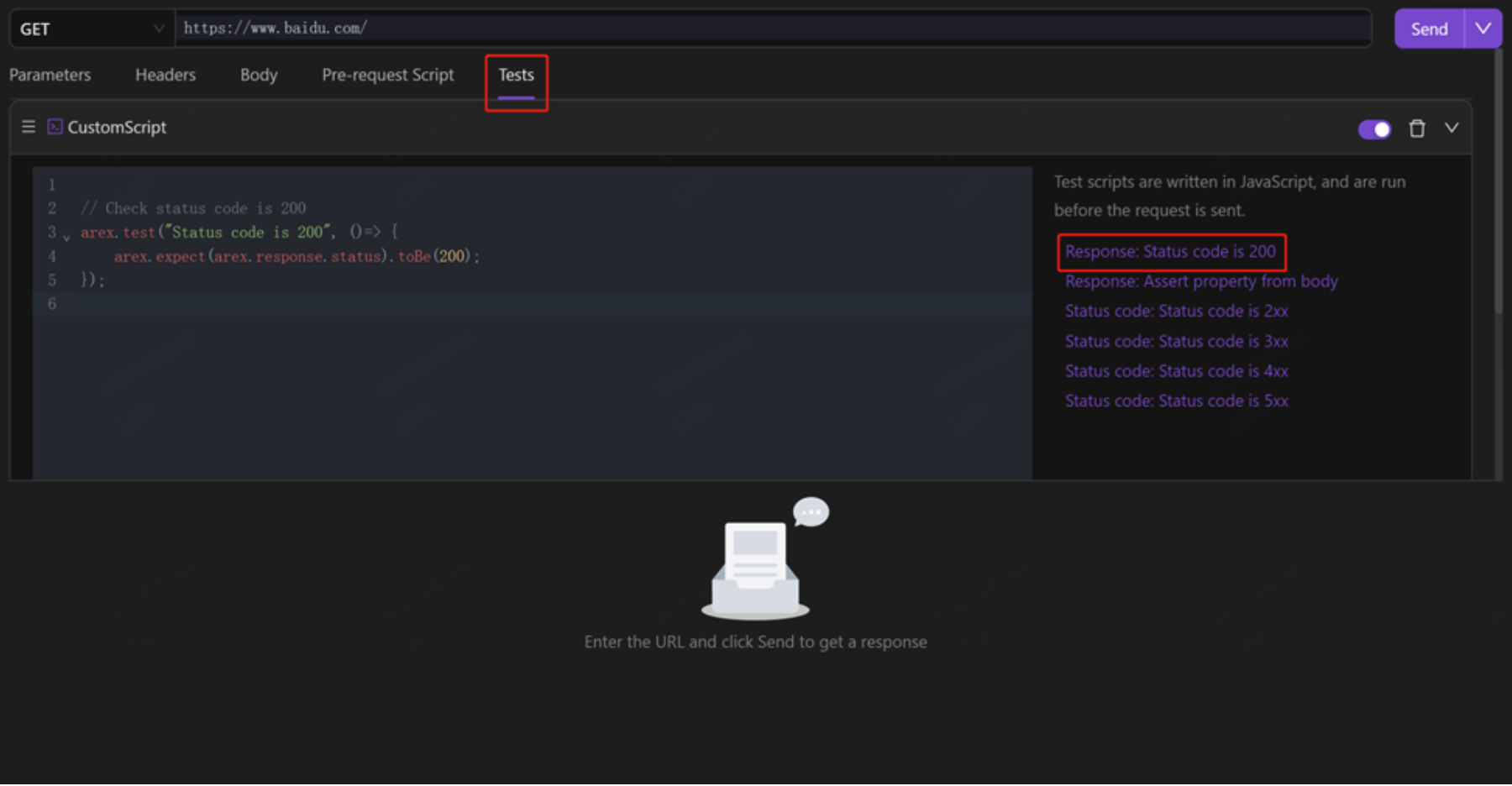

Post-request Tests (JavaScript): Assert response status, data, or performance

Example Test Script:

// Check if response code is 200
pm.test("Status OK", () => pm.response.to.have.status(200));

// Validate JSON structure
pm.test("Valid JSON", () => {
   pm.response.json().should.have.property("success", true);
});

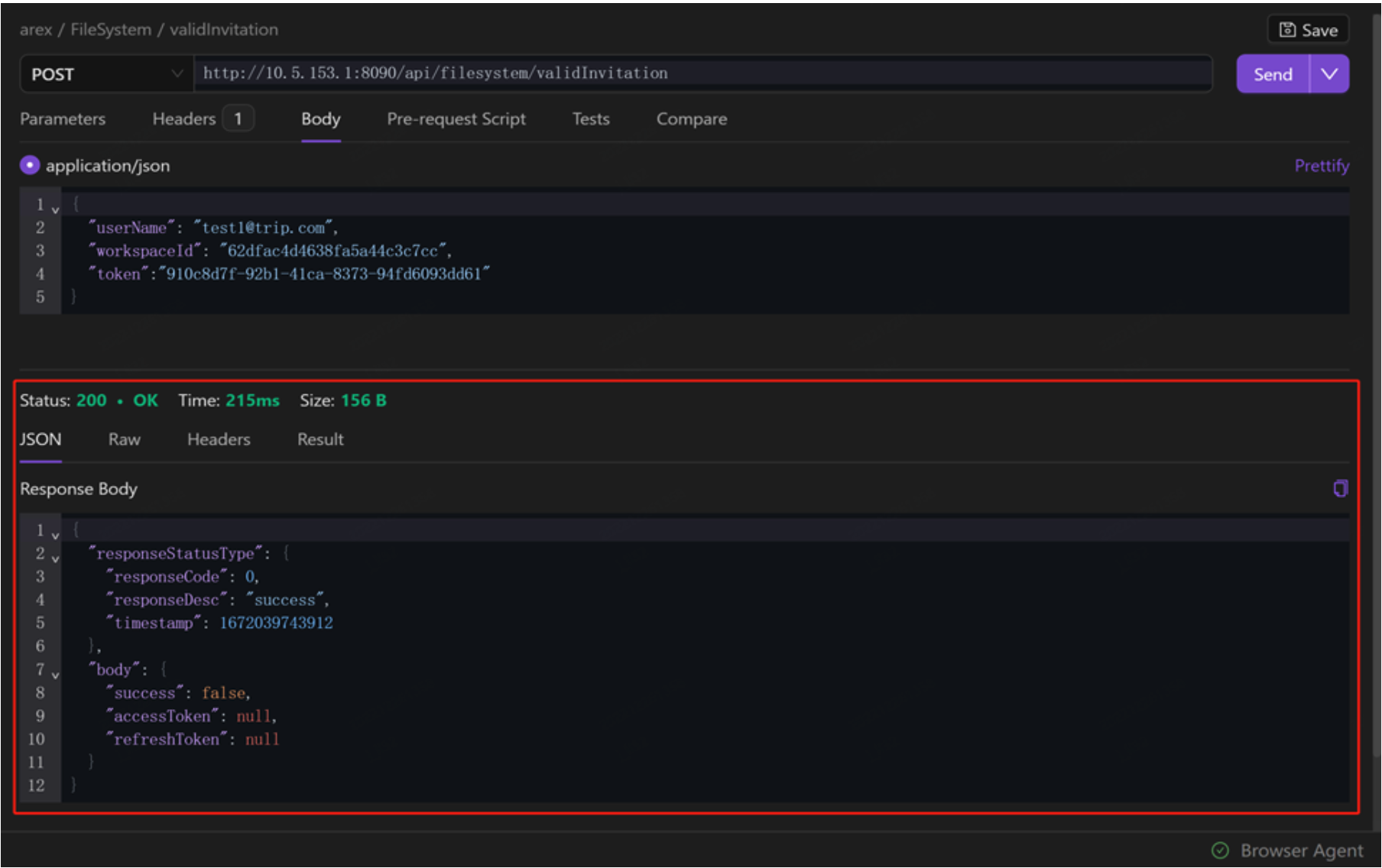

4. Analyze Responses

Body: View formatted JSON/XML
Headers: Inspect metadata (e.g., Content-Type)
Test Results: Verify automated assertions

Conclusion

API testing is non-negotiable in today's microservices-driven ecosystems. Tools like SoftProbe streamline validation across functional, performance, and security dimensions, ensuring robust APIs that power resilient applications. By catching issues early, teams reduce downtime, enhance user trust, and accelerate time-to-market.
